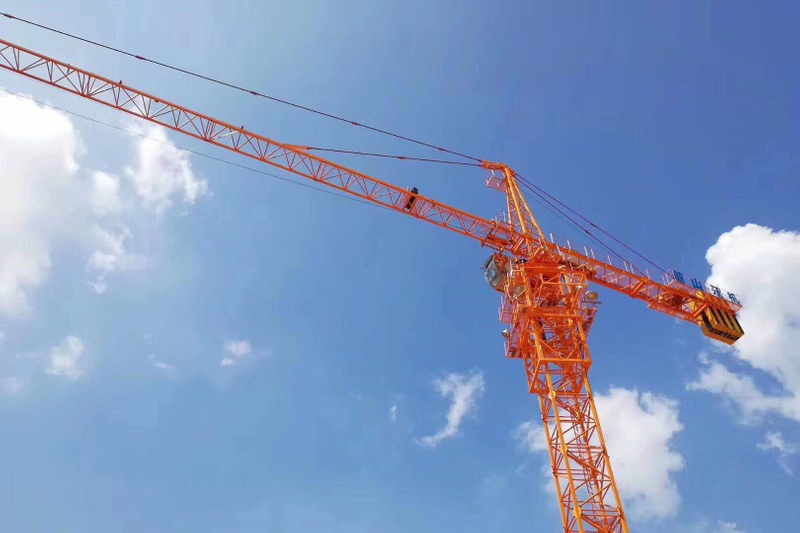

Self-Raising Tower Crane QTZ80

Availability:

Quantity:



Inquire Add to Basket

Item		Unit	2times rates	4times rates
Rated load moment		kN.m	800
The Max working radius		m	62
The Min working radius		m	3
The Max loading weight		t	3	6
Lifting height	Independent type	m	45
	Attached type		151.4	75
Structure weight (Independent type)		t	36.6
Countering weight	Max range 62m	t	13.4
	Max range 56m		12
	Max range 50m		10

Self-Raising Tower Crane QTZ80

2025 Indonesia PIK Phase 2 PVD Installation Project
2025 Malaysia Sarawak PVD Installation Project
VAUUM PREALODING VS SURCHARGE METHOD COST ANALYZE
2024 IRAQ AL FAW PORT PVD CONSTRUCTION WORK

2024 IRAQ AL FAW PORT PVD CONSTRUCTION WORK
2024 HONG KONG PROJECT PVD MACHINE SUPPLY
2023 Iraq Wick Machine & Material Supply
HLS 'Assist' Barsha Road to Clean Water
2023 New Zealand PVD Installation Project
Bagladesh Padma Bridge Project（2019-2020）

Project Background：The Padma Bridge is the largest project under construction in Bangladesh. The total investment is about 4.4 billion US dollars (about 29.2 billion yuan). The funds are all from Bangladesh ’s own funds; it is also the largest single bridge project undertaken overseas by Chinese com
NON-SAND VACUUM PRELOADING DRAINAGE METHOD

Overview：NON-SAND VACUUM PRELOADING DRAINAGE METHOD is widely applied to accelerate the soil consolidation, which can apply in large area soft soil foundation treatment, especially to the dredging soil and super soft soil condition, It can greatly saving the construction period, it can replace the s
What is Soft & Weak Foundation

What is Soft & Weak FoundationSoft & Weak foundation refers to the foundation mainly composed of silt, silty soil, alluvial fill, miscellaneous fill or other highly compressible soil layers. This kind of foundation has high water content, low bearing capacity, poor stability, high compressibility, a
Guangdong HLS Civl Engineering Foundation Co.,Ltd.

HLS Engineering the Ground Improvement Solution Provider. WE are contributed to provide Design, Construction, Machinery and Material to reinforce the soil.
Why have to engage the soft foundation treatment?

What is Soft & Weak FoundationSoft & Weak foundation refers to the foundation mainly composed of silt, silty soil, alluvial fill, miscellaneous fill or other highly compressible soil layers. This kind of foundation has high water content, low bearing capacity, poor stability, high compressibility, a
Hazards about without soft foundation treatment

What is Soft & Weak FoundationSoft & Weak foundation refers to the foundation mainly composed of silt, silty soil, alluvial fill, miscellaneous fill or other highly compressible soil layers. This kind of foundation has high water content, low bearing capacity, poor stability, high compressibility, a
Soft Foundation treatment method of HLS

What is Soft & Weak FoundationSoft & Weak foundation refers to the foundation mainly composed of silt, silty soil, alluvial fill, miscellaneous fill or other highly compressible soil layers. This kind of foundation has high water content, low bearing capacity, poor stability, high compressibility, a
SURCHARGE PRELOADING METHOD

Overview：Surcharge Preloading Method is widely apply in soft soil improvement projects, and the method will be Site Leveling + Sand Layer + PVD Installation + Drainage Channel Excavation. Performance:◎ Increase Bearing Capacity ◎ Increase Soil Consolidation ◎ Reduce different Settlement after Discha
Soft improvement for Zhuhai Huihua Experimental School （Year 2019）

Project Background：The project of Zhuhai Huihua Experimental School in Guangdong province is located in Pingsha Town, Gaolan Port Economic Zone, Zhuhai City. The project covers a total area of 32,000 square meters, with a total construction area of 37629 square meters, including 4515 square meters r
The Package-9 of N-8 Highway Improvement Project In Bangladesh （Year 2018）

Project Background:On May 29, 2017, CCECC successfully signed the package 9 of the N8 highway expansion project. The project was obtained through the negotiation of tenders and was the government ’s own funds. The owner was the Bangladesh Army Engineering Office. The main project was the constructio
Bangladesh Bodu Akali 1320MW Coal-fired Power Plant Project（Year 2020）

Project Background：This project is located in Bodu Akali County, Barisal Zone, southern city of Bangladesh, 210 kilometers away from the capital Dhaka and 160 kilometers away from Chittagong. A 2 × 660MW ultra-supercritical coal-fired power generating unit will be built, and the expansion conditions
Costa Rica Highway 32 Repair and Expansion Project（Year 2020）

Project Background:On November 2nd and 27th, 2017, CCCC-SHEC Third Highway Engineering Co., Ltd received the Phase 1 and Phase 2 bid winning notices for the repair and expansion of Highway 32 in Costa Rica. The two bids were merged into the first branch manager department after a study and decision

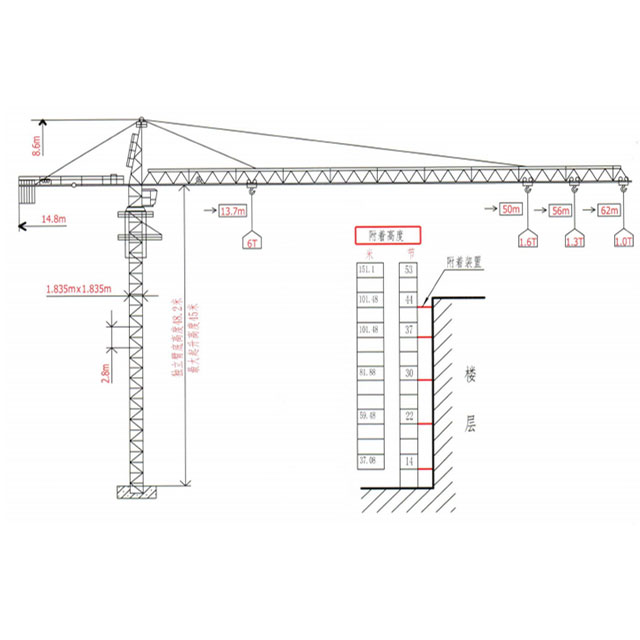

62m boom	m	3-13.6	14	16	18	20	22	24	25.6	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60	62
4times rates	t	6.00	5.82	5.04	4.44	3.95	3.56	3.23	3.00	2.95	2.70	2.50	2.32	2.16	2.01	1.89	1.77	1.67	1.57	1.49	1.41	1.33	1.27	1.21	1.15	1.10	1.04	1.00
2times rates	t	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	2.95	2.70	2.50	2.32	2.16	2.01	1.89	1.77	1.67	1.57	1.49	1.41	1.33	1.27	1.21	1.15	1.10	1.04	1.00

56m boom	m	3-14.9	16	18	20	22	24	26	28	28.1	30	32	34	36	38	40	42	44	46	48	50	52	54	56
4times rates	t	6.00	5.57	4.90	4.37	3.94	3.57	3.27	3.01	3.00	2.78	2.58	2.40	2.24	2.11	1.98	1.87	1.76	1.67	1.58	1.50	1.43	1.36	1.30
2times rates	t	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	2.78	2.58	2.40	2.24	2.11	1.98	1.87	1.76	1.67	1.58	1.50	1.43	1.36	1.30

50m boom	m	3-15.6	16	18	20	22	24	26	28	29.5	30	32	34	36	38	40	42	44	46	48	50
4times rates	t	6.00	5.86	5.17	4.61	4.15	3.77	3.45	3.17	3.00	2.94	2.73	2.54	2.38	2.23	2.10	1.98	1.87	1.70	1.68	1.60
2times rates	t	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	2.94	2.73	2.54	2.38	2.23	2.10	1.98	1.87	1.77	1.68	1.60

62m boom	m	3-13.6	14	16	18	20	22	24	25.6	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60	62
4times rates	t	6.00	5.82	5.04	4.44	3.95	3.56	3.23	3.00	2.95	2.70	2.50	2.32	2.16	2.01	1.89	1.77	1.67	1.57	1.49	1.41	1.33	1.27	1.21	1.15	1.10	1.04	1.00
2times rates	t	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	2.95	2.70	2.50	2.32	2.16	2.01	1.89	1.77	1.67	1.57	1.49	1.41	1.33	1.27	1.21	1.15	1.10	1.04	1.00

56m boom	m	3-14.9	16	18	20	22	24	26	28	28.1	30	32	34	36	38	40	42	44	46	48	50	52	54	56
4times rates	t	6.00	5.57	4.90	4.37	3.94	3.57	3.27	3.01	3.00	2.78	2.58	2.40	2.24	2.11	1.98	1.87	1.76	1.67	1.58	1.50	1.43	1.36	1.30
2times rates	t	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00	2.78	2.58	2.40	2.24	2.11	1.98	1.87	1.76	1.67	1.58	1.50	1.43	1.36	1.30

Product

Hot-Selling

Self-Raising Tower Crane QTZ80

Quick Links

Product

Contact

Item	Running direction	Rate	Level	m/min	Ton	Power
Lifting	Up and down	2times rates	Ⅰ	8.5	3	30/30/6.8
			Ⅱ	50	3
			Ⅲ	100	1.5
		4times rates	Ⅰ	4.25	6
			Ⅱ	20	6
			Ⅲ	40	3
Amplitude of variation	Left and right		Ⅰ	20		2.2
Amplitude of variation	Left and right		Ⅱ	40		3.3
Rotation	Around		Ⅳ	≤0.6r.p.m		2.2×2
Climb	Up and down			0.4		7.5
