STATIC HAMMER DATA LOGGER

The HYDRAULIC HAMMER PILR DRIVER DATA LOGGER can achieve followings function:
1. It can achieve the welding actual time calculation & start or pause time;
2. The Verticality of the piling rig;
3. The GPS position of the piling machine;
4. The continuous depth of the piling.

  • HLS-SP03

  • HLS

Availability:
Quantity:
Inquire Add to Basket

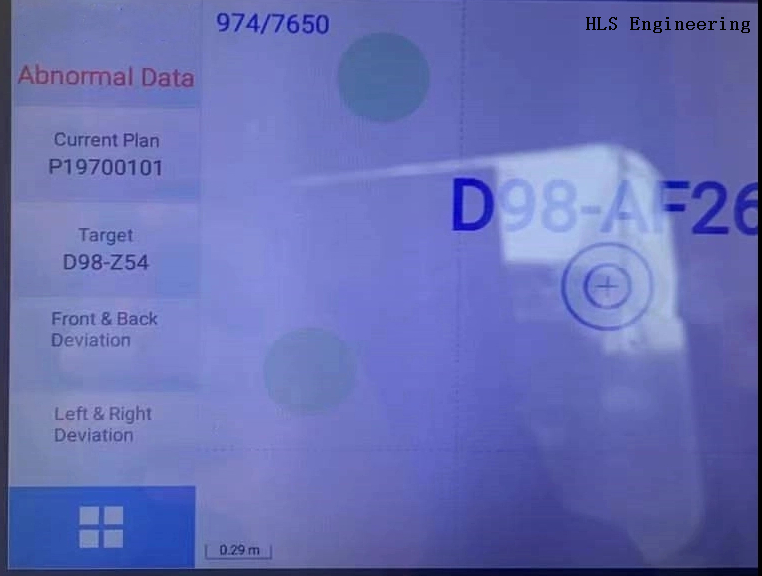

Relying on the BDS high-precision positioning technology and adopting the southern high-precision integrated dual-antenna mode, the base station receives differential correction data to determine and calculate the front and rear antenna coordinates and attitude. And through professional piling software to realize the piling lofting, the measurement and control of the pile core point can reach an accuracy within 3cm.

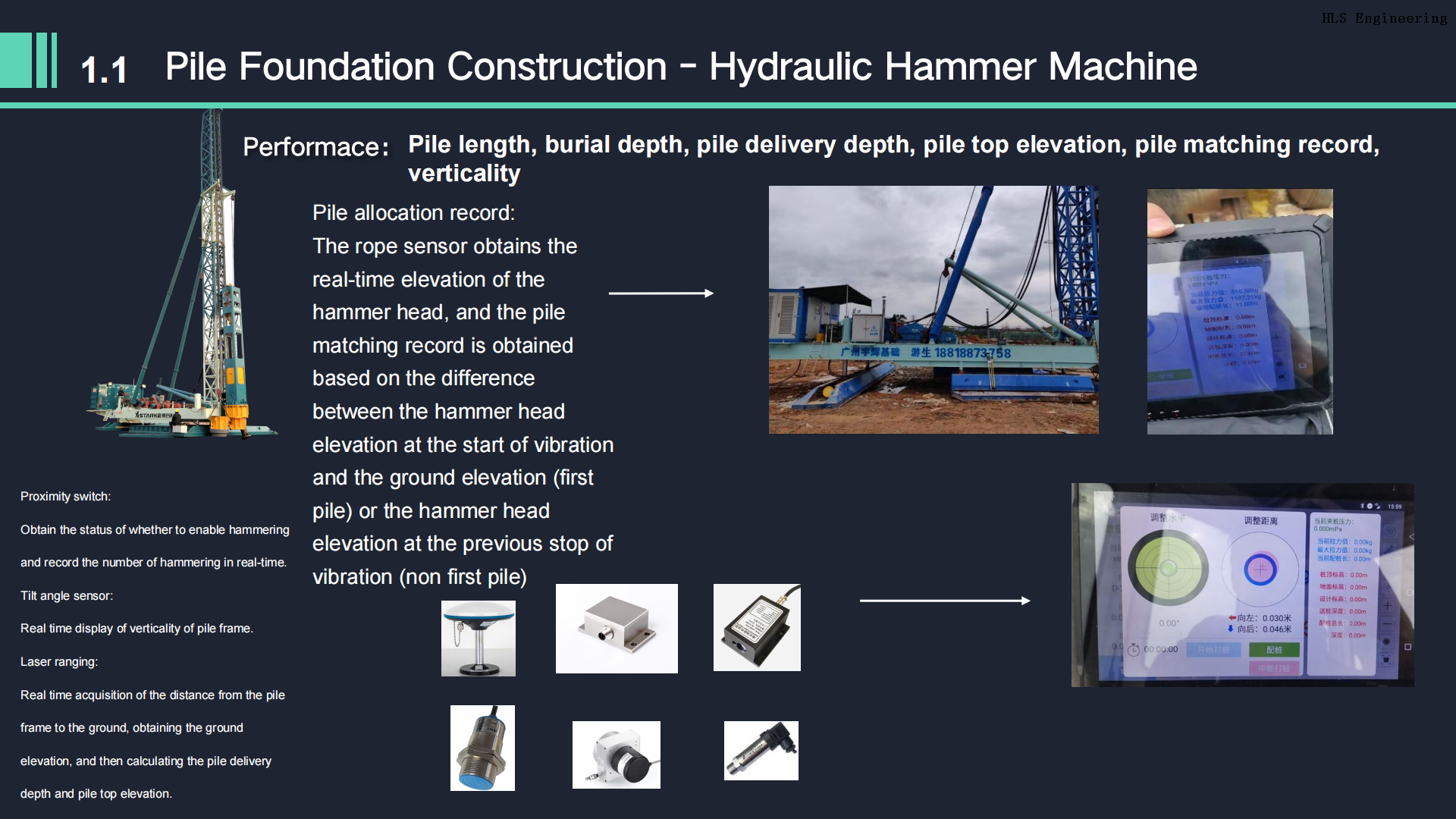

Smart Piling Machine Catalog _12_00

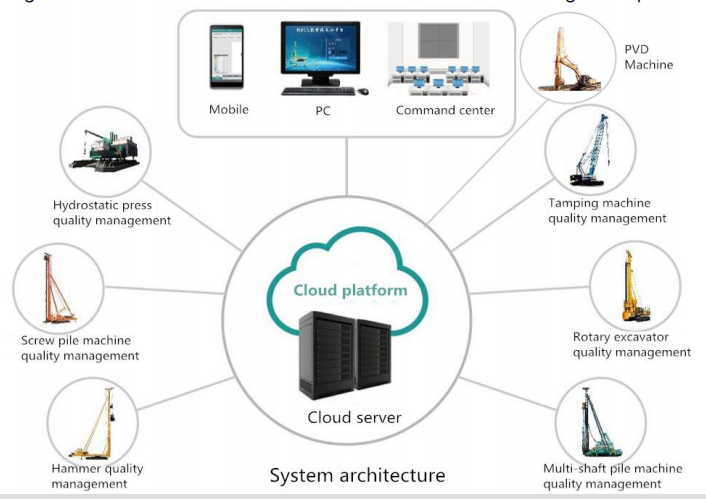

微信截图_20220111170014


微信截图_20220112155004


1. 7-inch touchable LCD display can save 15,000-20,000 data group;

2. It detects length, fail installation, angle, pressure, time and other parameters during Vertical Wick Drain installation.

3. When the Vertical Wick Drain fail installation, the recorder can record and display the length of the failure and automatically calculate the effective length;

4. The sensor has strong seismic capacity, can adapt to various types of construction machinery, and it can be applicable to any width of Vertical Wick Drain;

5. It can be used for small paper printing or A4-size paper printing at the construction site, and derived data with USB to print.

6. After power off, the data memory can be saved for 5 years; no need to replace the battery;

7. It can apply in AC220V AC or DC19-36V DC.

QQ截图20200516222125

  • Host: 1.0% accuracy

  • Depth: 0-99m, accuracy is 0.05% and resolution is 0.01m

  • Angle: ±30°, 0.5% accuracy, resolution 0.01°

  • Pressure: 0-500KG, 0.5% accuracy, resolution 1kg

  • Power supply: AC 220V; DC 19-36V;

  • Storage: each group of 752 piles, a total of 32 groups

1. Boot interface: recorder connects the power supply, switch on the power, the recorder host interface display

WechatIMG694


2. Setting interface: click “Settings”, according to the actual situation.

 WechatIMG692




Note: In order to facilitate the observation, click numerical parts on the red box as shown “downlink length”, “release tape speed”, “pressure”, “angle”, set the appropriate maximum value of the actual construction.


WechatIMG693



WechatIMG696
