PVD DATA LOGGER

Wick Drain Pile Driver Data Logger
1. Can release the labor of the record.
2. Can change the traditional piling points to digital smart civil work.
3. Can record the actual PVD meters, verticality, continuous piling meters, time and Max pressure.

  • HLS-DL33

  • HLS

Availability:
Quantity:
Inquire Add to Basket

Data Logger is the professional instrument for the construction of Vertical Wick Drain Installation. The instrument is suitable for various types of Vertical Wick Drain Installation and various types of construction machinery. It combines Integrated microcomputer processing and 7 inch touchable LCD, without external key parameters setting.

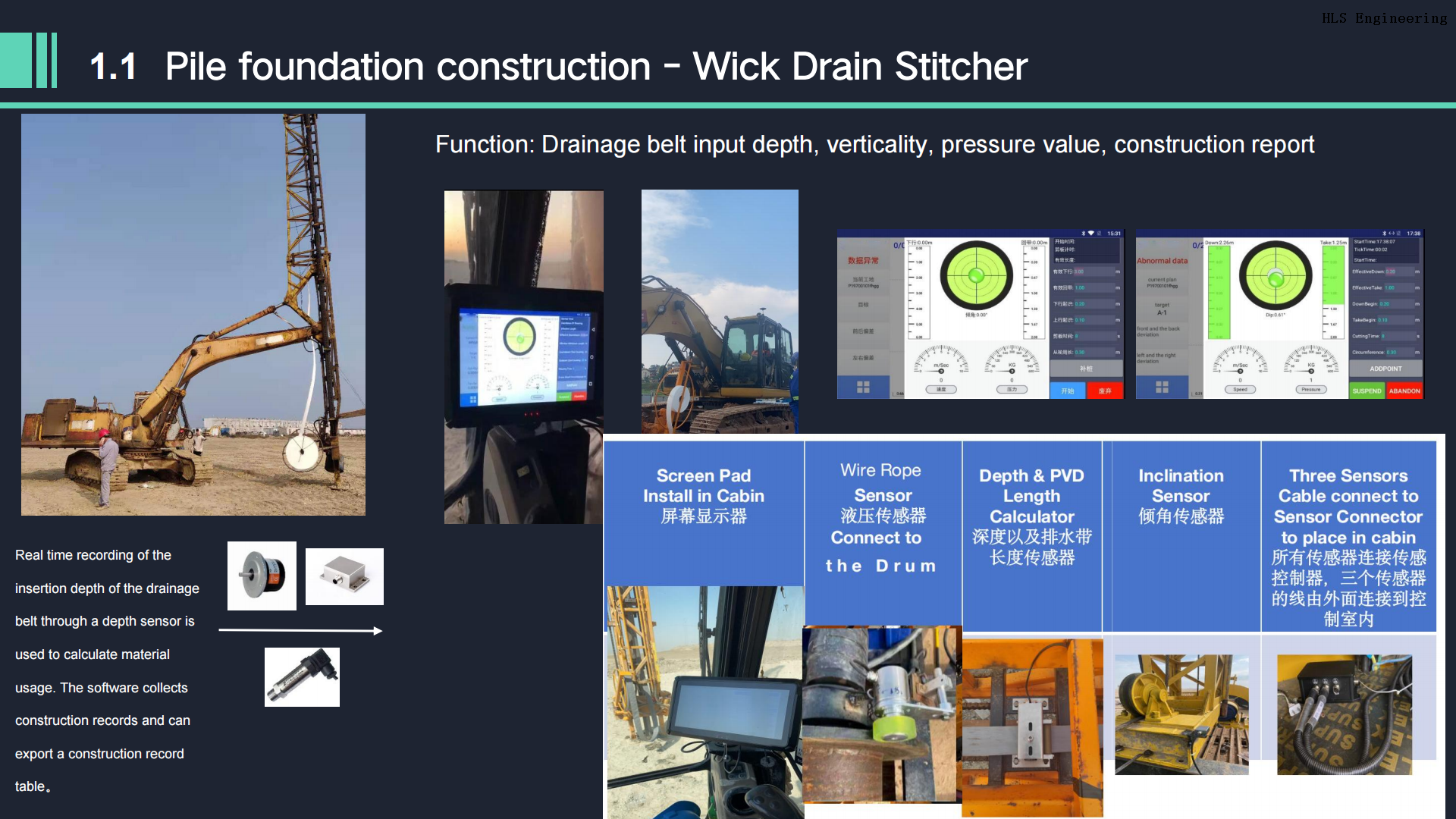

Wick Drain

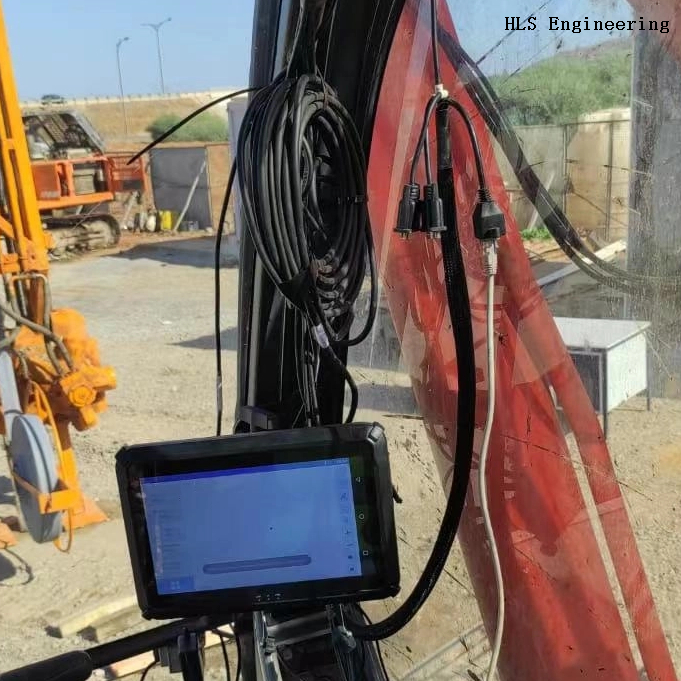

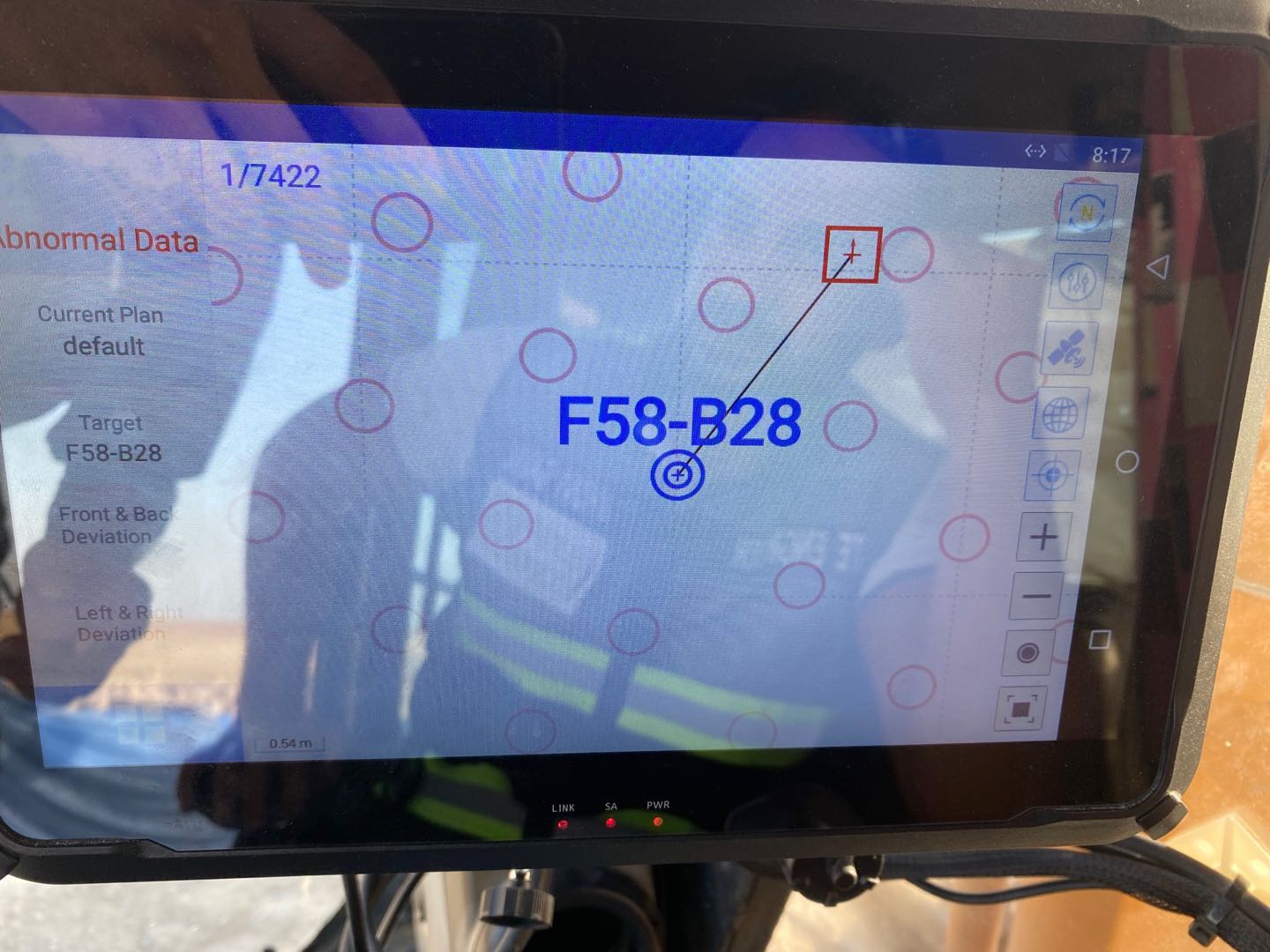

kuwait (2)微信图片_20220110111411

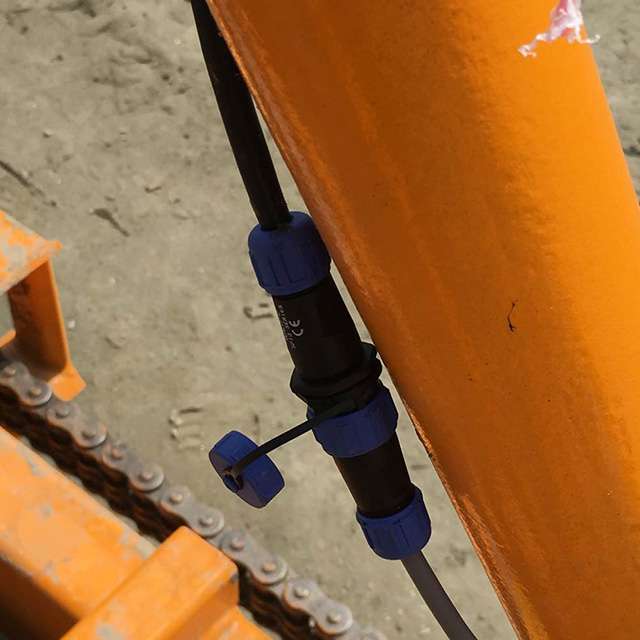

The Vertical Wick Drain construction recorder connects recorder host and each sensor by signal lines. The sensor collects data and produces signal which transmits to the recorder host, which analyzes intelligently, operates and stores after treatment during working. The record storage can be displayed and printed directly on the recorder, or can export the data via USB. It processes software by special drainage plates configured data by computer display, save and print. After the printing report is signed by the engineer, it can be used as an important basis for the project contractor to settle the engineering quantity.

The Vertical Wick Drain construction recorder has solved a difficult problem about the inaccurately detect each Vertical Wick Drain actual length of the flashboard during processing Vertical Wick Drain at soft foundation treatment construction. It can reduce material waste, which provides reliable technical support for quality supervision of the construction project.




1. 7-inch touchable LCD display can save 15,000-20,000 data group;

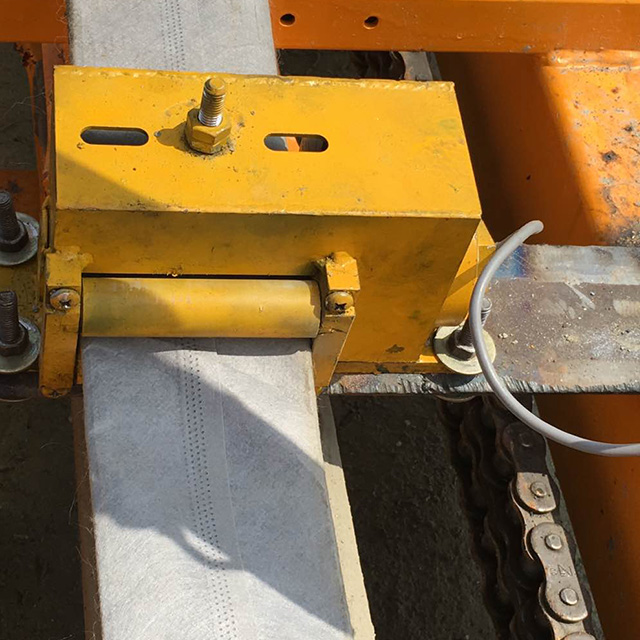

2. It detects length, fail installation, angle, pressure, time and other parameters during Vertical Wick Drain installation.

3. When the Vertical Wick Drain fail installation, the recorder can record and display the length of the failure and automatically calculate the effective length;

4. The sensor has strong seismic capacity, can adapt to various types of construction machinery, and it can be applicable to any width of Vertical Wick Drain;

5. It can be used for small paper printing or A4-size paper printing at the construction site, and derived data with USB to print.

6. After power off, the data memory can be saved for 5 years; no need to replace the battery;

7. It can apply in AC220V AC or DC19-36V DC.

QQ截图20200516222125

  • Host: 1.0% accuracy

  • Depth: 0-99m, accuracy is 0.05% and resolution is 0.01m

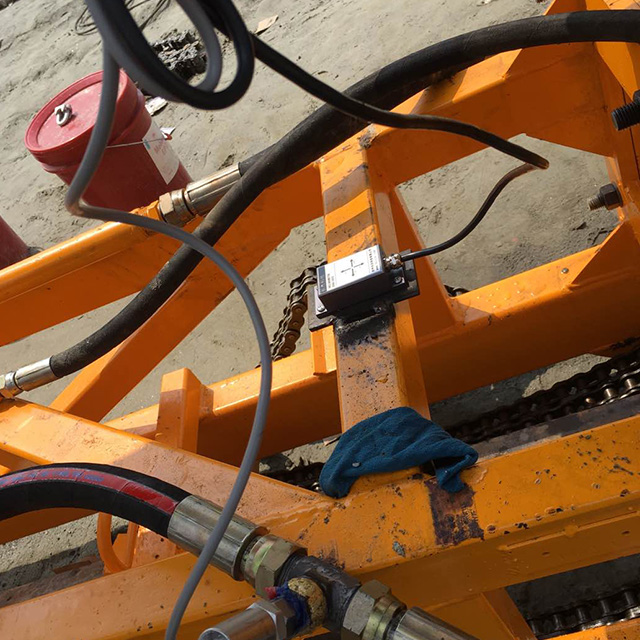

  • Angle: ±30°, 0.5% accuracy, resolution 0.01°

  • Pressure: 0-500KG, 0.5% accuracy, resolution 1kg

  • Power supply: AC 220V; DC 19-36V;

  • Storage: each group of 752 piles, a total of 32 groups

1. Boot interface: recorder connects the power supply, switch on the power, the recorder host interface display

WechatIMG694


2. Setting interface: click “Settings”, according to the actual situation.

 WechatIMG692




Note: In order to facilitate the observation, click numerical parts on the red box as shown “downlink length”, “release tape speed”, “pressure”, “angle”, set the appropriate maximum value of the actual construction.


WechatIMG693



WechatIMG696
