While the Vacuum Pre-loading Method ongoing, the water sill be drainage out from the ground, but at this moment, the water on the ground will be imbalance spread.

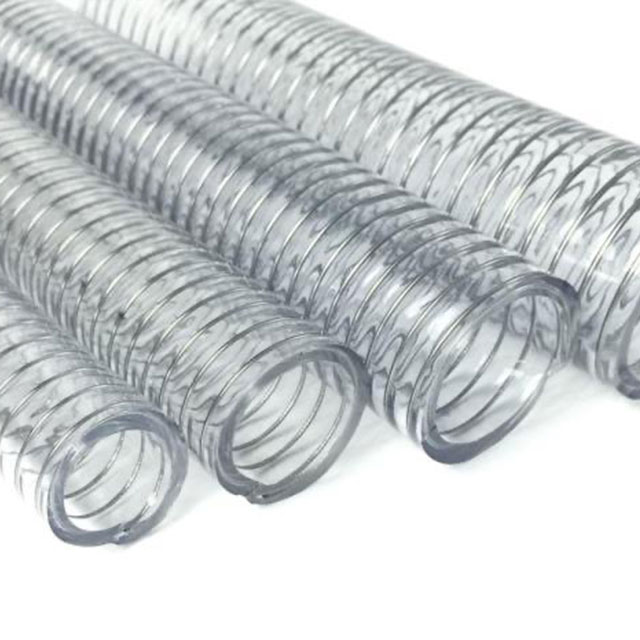

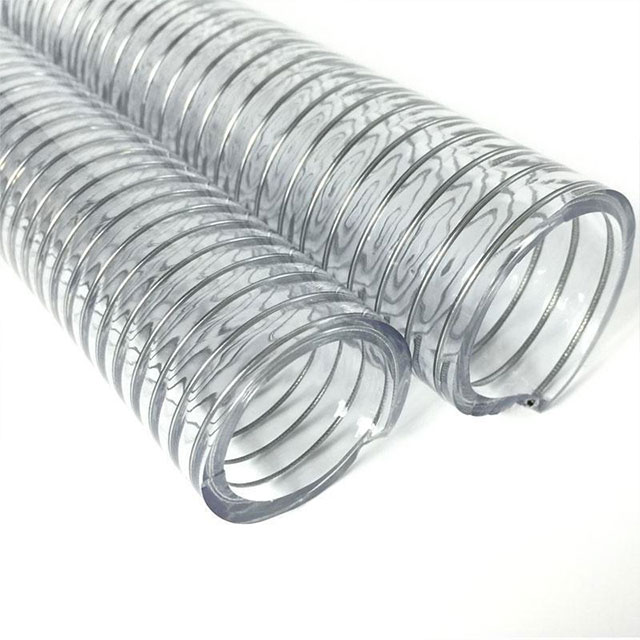

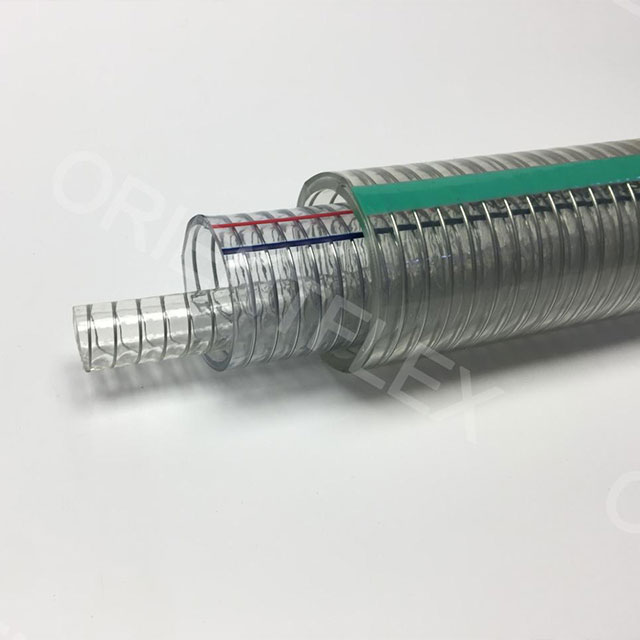

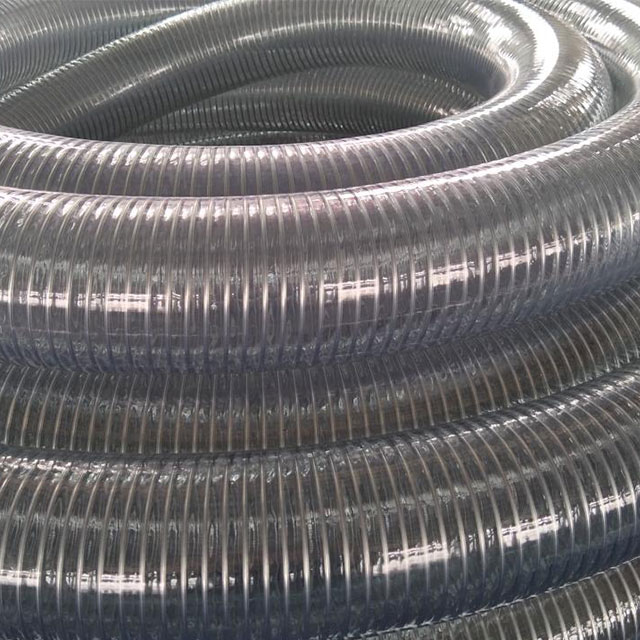

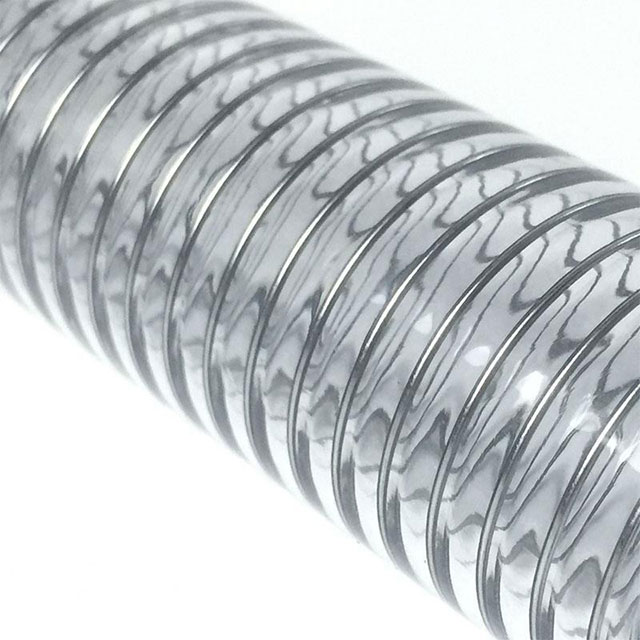

The hose with steel wire screwing inland in the hose. It's light, transparent, with small bending radius, which has good adaptability to hard weather conditions and minus pressure.
Performance:
a. This hose is widely used for suction and discharge of water. It's non-toxic,without odor.
b. Food grade hose made of top grade PVC.
c. Anti-static hose, we can also insert the cooper wire into hose, this hose can avoid the block of the flowing in the hose due to static, then protect the user from getting electric shock.
d..Steel wire & fiber double reinforced hose, be made with steel wire and high quality fiber by advanced technology, double reinforcement, can bear 2-3times higher pressure compared with common hose.
Working Temperature:
Normal grade: -5ºC to +65ºC
High temperature resistant grade: -5ºC to +160ºC
Low temperature resistant grade: -40ºC to +65ºC
Application:
Suction and transfer of water;
Oil, powder, granules and light chemicals in full vacuum lines;
Vacuum pump lines, coolant lines, air conditioning systems, air and water supply lines; Washing equipment, and other areas where require tight turns and sharp bends.
While the Vacuum Pre-loading Method ongoing, the water sill be drainage out from the ground, but at this moment, the water on the ground will be imbalance spread.
The hose with steel wire screwing inland in the hose. It's light, transparent, with small bending radius, which has good adaptability to hard weather conditions and minus pressure.
Performance:
a. This hose is widely used for suction and discharge of water. It's non-toxic,without odor.
b. Food grade hose made of top grade PVC.
c. Anti-static hose, we can also insert the cooper wire into hose, this hose can avoid the block of the flowing in the hose due to static, then protect the user from getting electric shock.
d..Steel wire & fiber double reinforced hose, be made with steel wire and high quality fiber by advanced technology, double reinforcement, can bear 2-3times higher pressure compared with common hose.
Working Temperature:
Normal grade: -5ºC to +65ºC
High temperature resistant grade: -5ºC to +160ºC
Low temperature resistant grade: -40ºC to +65ºC
Application:
Suction and transfer of water;
Oil, powder, granules and light chemicals in full vacuum lines;
Vacuum pump lines, coolant lines, air conditioning systems, air and water supply lines; Washing equipment, and other areas where require tight turns and sharp bends.
内径 | 外径 | 重量 | W.P.(at23C) | Std Length | ||||
英寸 | mm | 英寸 | mm | kg/m | bar | psi | m | ft |
1/4 | 6 | 0.433 | 11 | 0.12 | 10 | 145 | 100 | 300 |
5/16 | 8 | 0.551 | 14 | 0.15 | 10 | 145 | 100 | 300 |
3/8 | 10 | 0.629 | 16 | 0.2 | 10 | 145 | 100 | 300 |
1/2 | 12 | 0.708 | 18 | 0.22 | 8 | 120 | 100 | 300 |
5/8 | 15 | 0.866 | 22 | 0.31 | 8 | 120 | 100 | 300 |
3/4 | 19 | 0.984 | 25 | 0.36 | 8 | 120 | 50 | 150 |
1 | 25 | 1.299 | 33 | 0.54 | 8 | 120 | 50 | 150 |
1-1/4 | 32 | 1.614 | 41 | 0.78 | 7 | 100 | 40 | 120 |
1-1/2 | 38 | 1.889 | 48 | 1.05 | 6 | 90 | 40 | 120 |
1-3/4 | 45 | 2.204 | 56 | 1.3 | 6 | 90 | 40 | 120 |
1-7/8 | 48 | 2.322 | 59 | 1.4 | 6 | 90 | 40 | 120 |
2 | 50 | 2.441 | 62 | 1.6 | 5 | 75 | 40 | 120 |
2-1/4 | 58 | 2.755 | 70 | 2 | 5 | 75 | 30 | 90 |
2-1/2 | 63 | 3.149 | 80 | 2.8 | 5 | 75 | 30 | 90 |
3 | 75 | 3.582 | 91 | 3.5 | 4 | 60 | 30 | 90 |
3-1/2 | 90 | 4.251 | 108 | 4.5 | 4 | 60 | 20 | 60 |
4 | 100 | 4.645 | 118 | 4.8 | 3 | 45 | 20 | 60 |
5 | 127 | 5.629 | 143 | 6 | 3 | 45 | 20 | 60 |
6 | 152 | 6.692 | 170 | 9 | 3 | 45 | 10 | 30 |
8 | 200 | 8.818 | 224 | 12 | 3 | 45 | 10 | 30 |
10 | 250 | 10.866 | 276 | 23 | 2 | 30 | 10 | 30 |
