LONG SPRIAL DATA LOGGER

LONG SPRIAL PILE DRIVER DATA LOGGER
1. Can release the labor of the record.
2. Can change the traditional piling points to digital smart civil work.
3. Can record the actual piling drilling meters, verticality, continuous piling meters.

  • HLS-CF06

  • HLS

Availability:
Quantity:
Inquire Add to Basket

Control indicators： pile position, pile sinking accuracy, construction time

Key parameters： current value of supporting layer, sinking current, number of reverse insertion, amount of gravel

Remote management: information management cloud platform, mobile APP real-time control of the construction site.

long Sprial 1_00

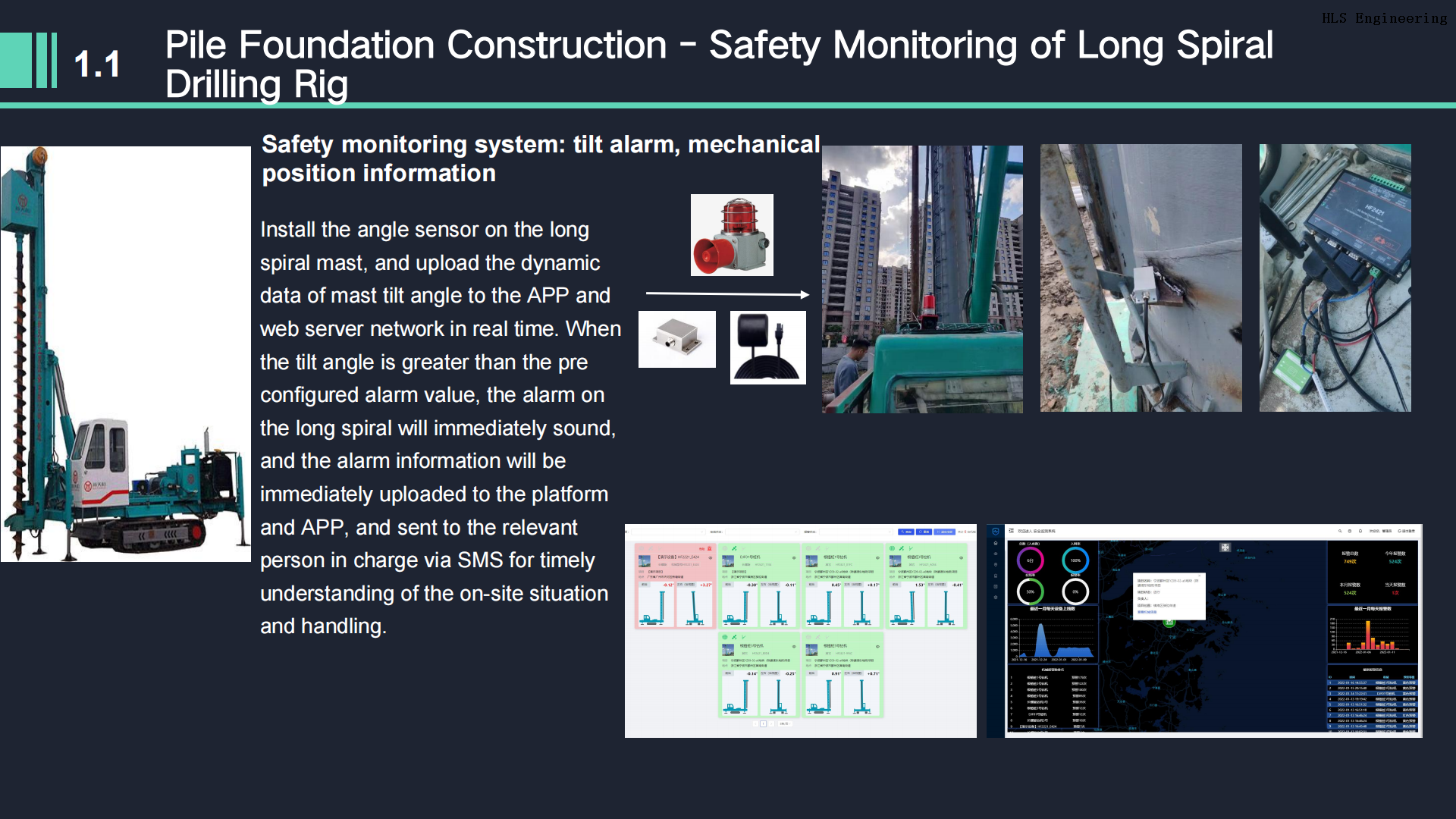

long sprial 2_00

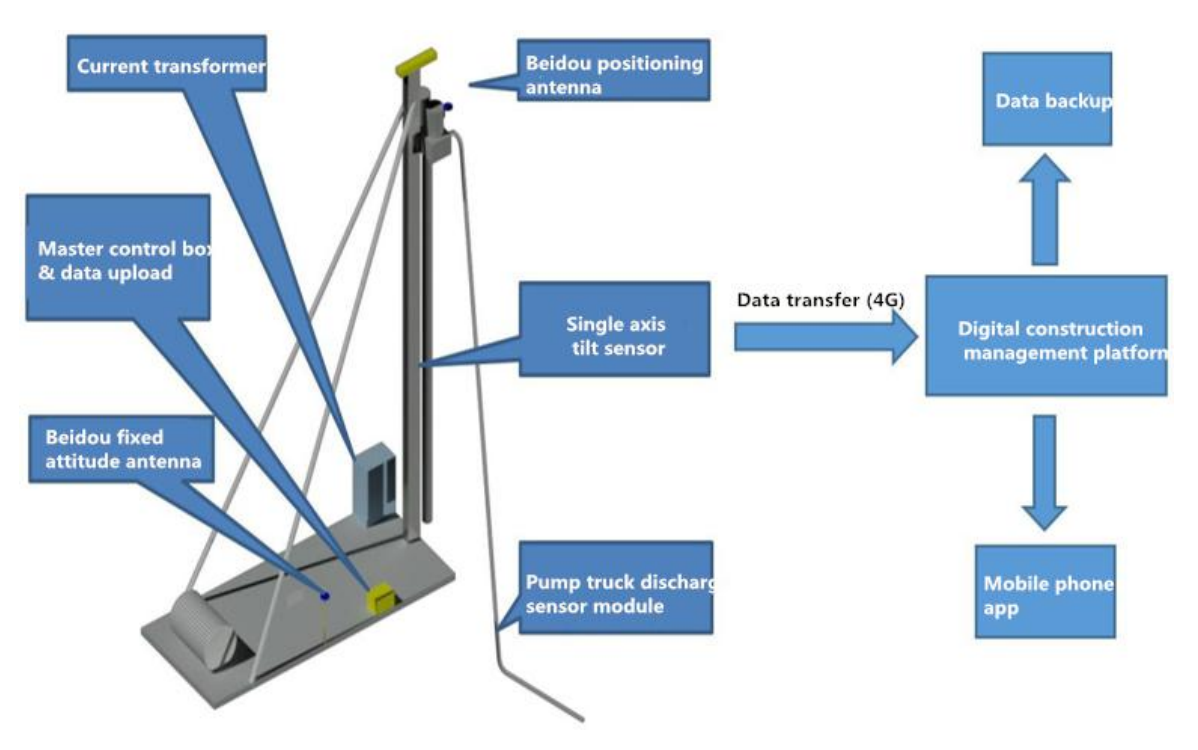

微信截图_20220112162732

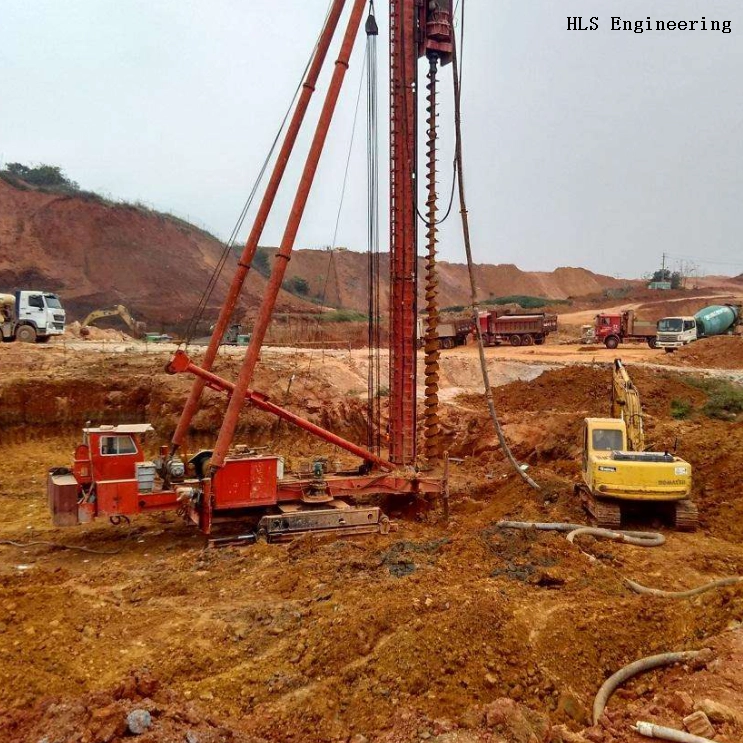

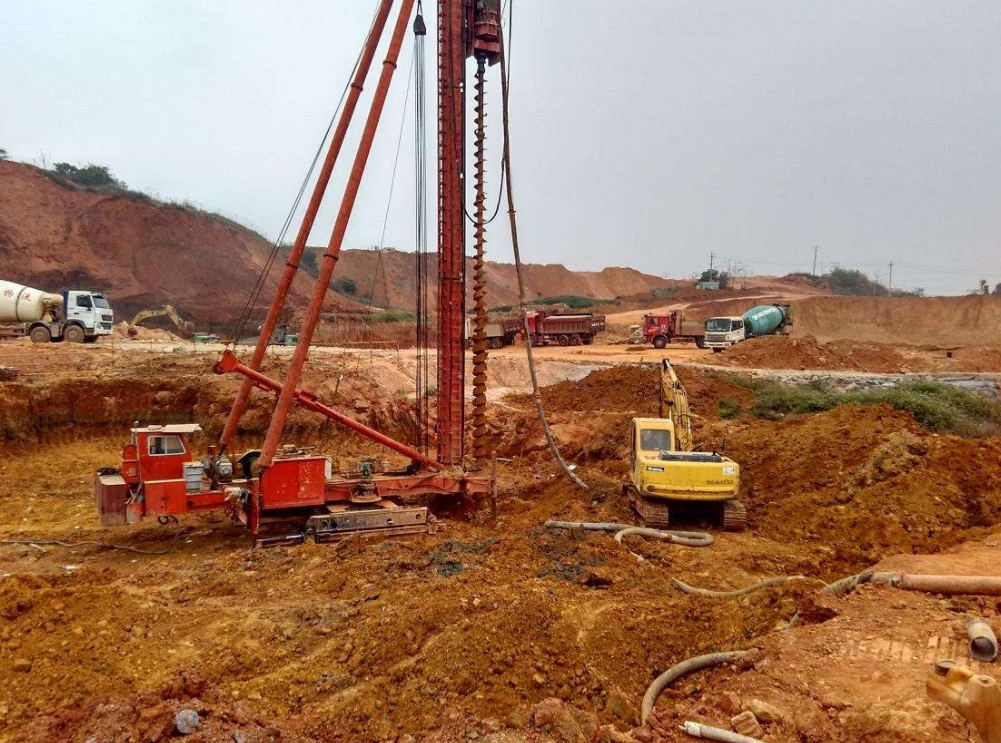

微信截图_20220112164353


1. 7-inch touchable LCD display can save 15,000-20,000 data group;

2. It detects length, fail installation, angle, pressure, time and other parameters during Vertical Wick Drain installation.

3. When the Vertical Wick Drain fail installation, the recorder can record and display the length of the failure and automatically calculate the effective length;

4. The sensor has strong seismic capacity, can adapt to various types of construction machinery, and it can be applicable to any width of Vertical Wick Drain;

5. It can be used for small paper printing or A4-size paper printing at the construction site, and derived data with USB to print.

6. After power off, the data memory can be saved for 5 years; no need to replace the battery;

7. It can apply in AC220V AC or DC19-36V DC.

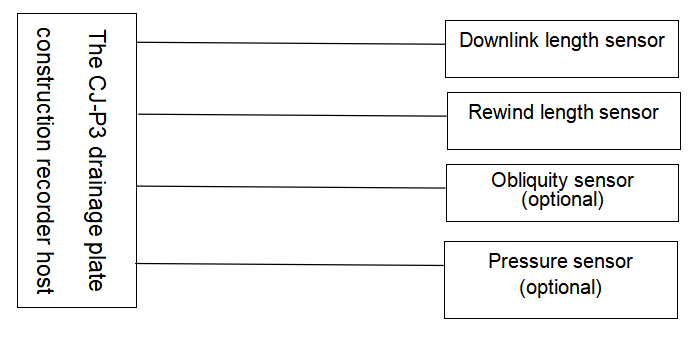

QQ截图20200516222125

  • Host: 1.0% accuracy

  • Depth: 0-99m, accuracy is 0.05% and resolution is 0.01m

  • Angle: ±30°, 0.5% accuracy, resolution 0.01°

  • Pressure: 0-500KG, 0.5% accuracy, resolution 1kg

  • Power supply: AC 220V; DC 19-36V;

  • Storage: each group of 752 piles, a total of 32 groups

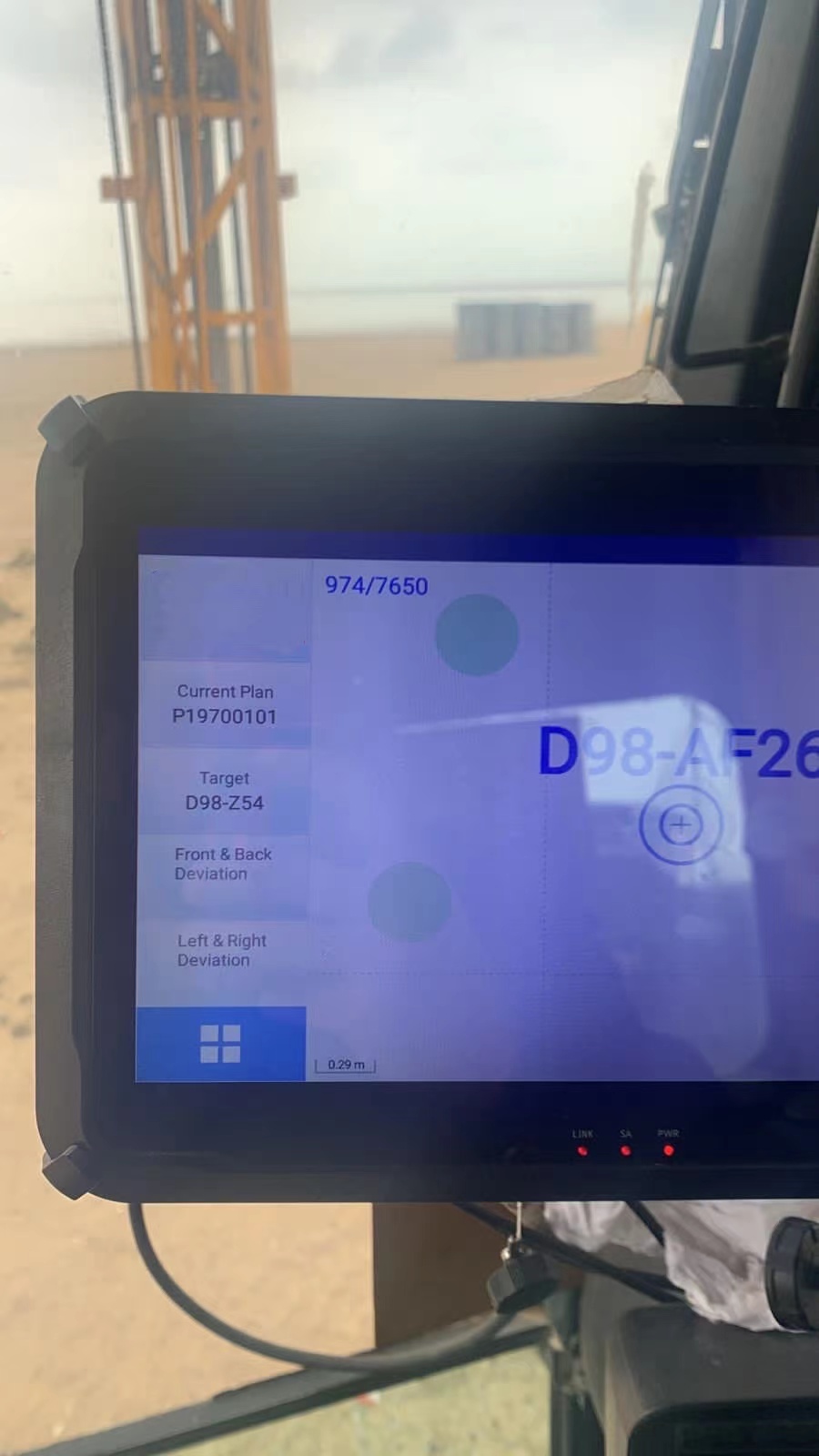

1. Boot interface: recorder connects the power supply, switch on the power, the recorder host interface display

WechatIMG694

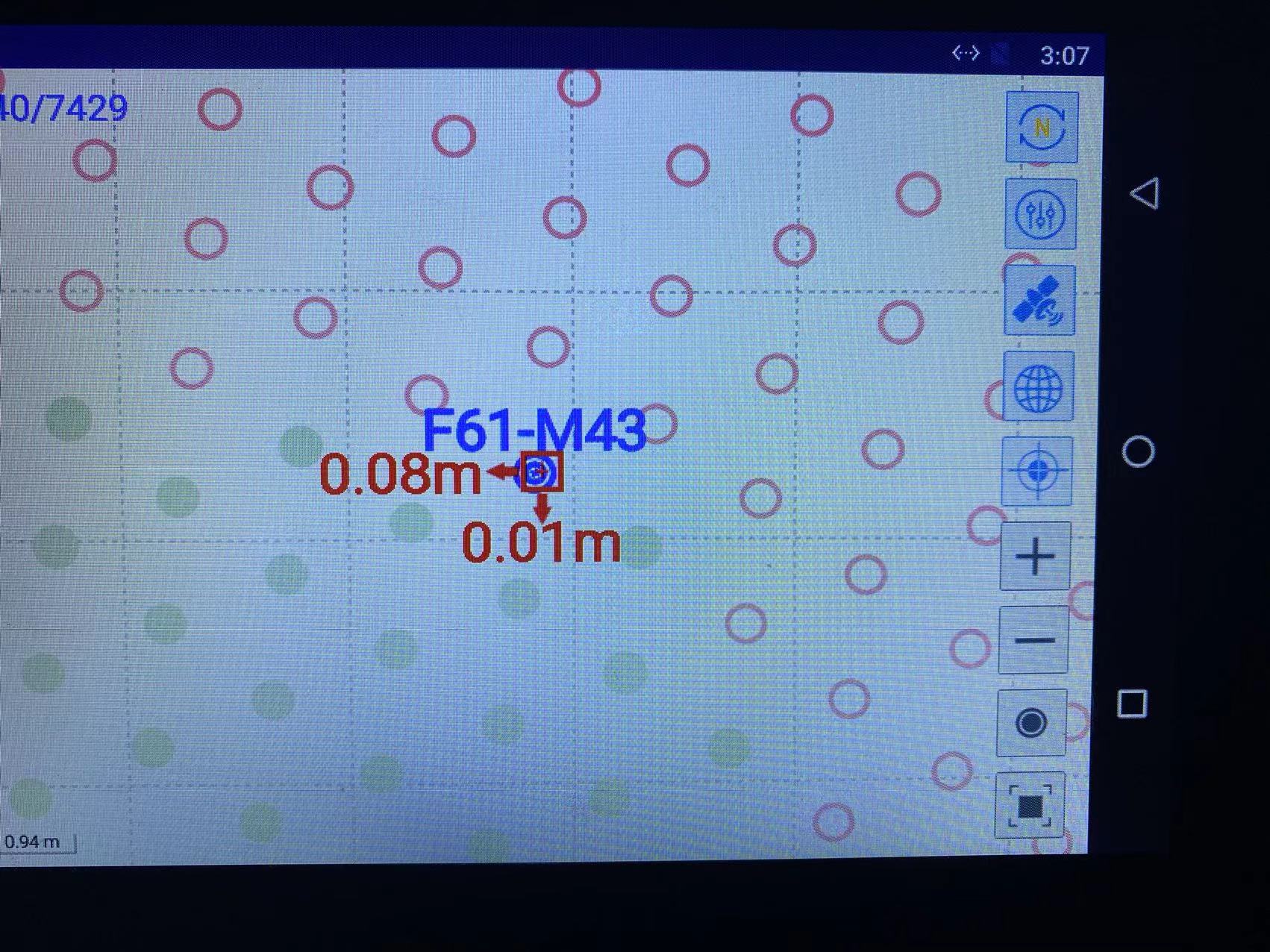

2. Setting interface: click “Settings”, according to the actual situation.

 WechatIMG692




Note: In order to facilitate the observation, click numerical parts on the red box as shown “downlink length”, “release tape speed”, “pressure”, “angle”, set the appropriate maximum value of the actual construction.

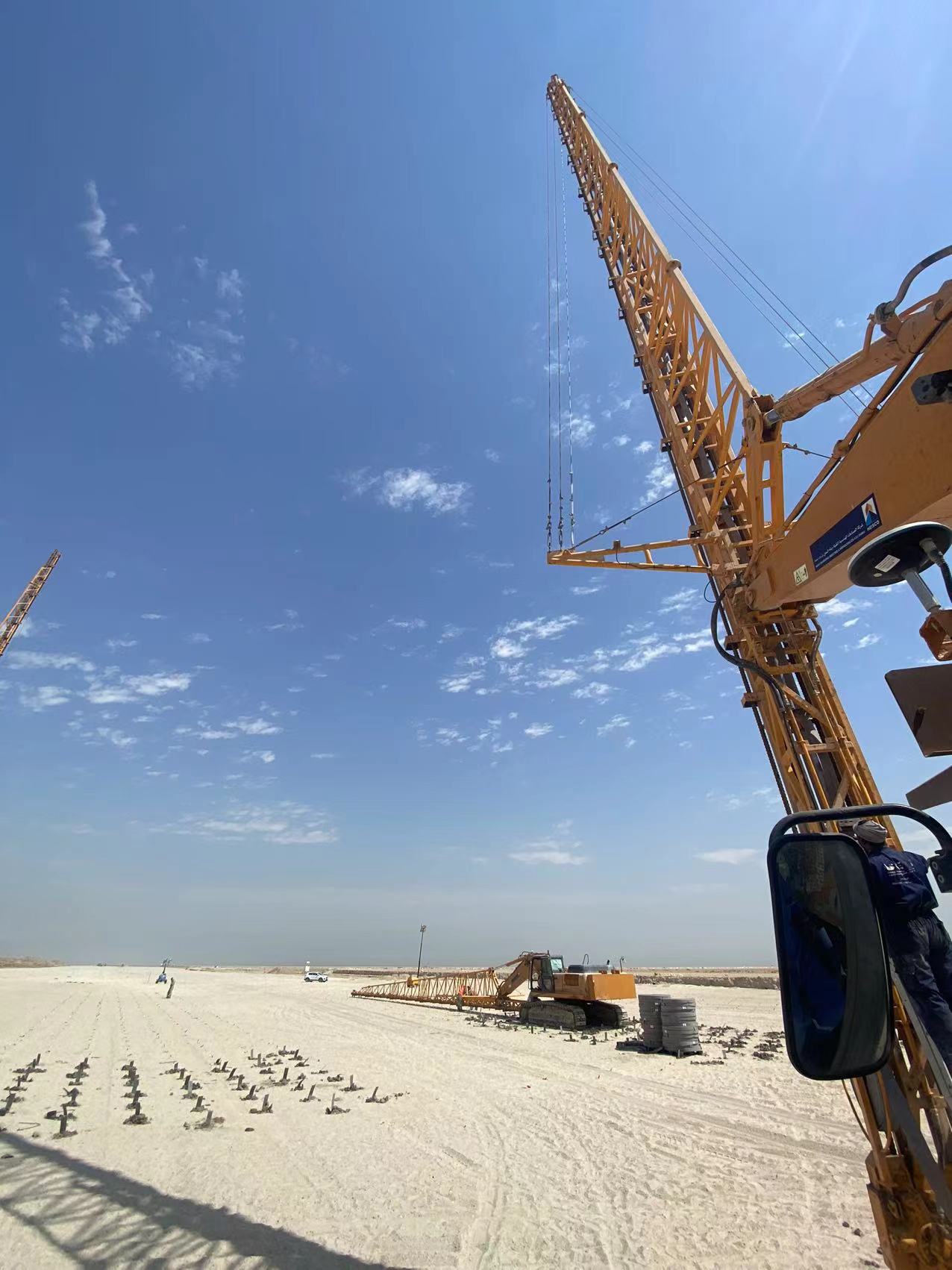

WechatIMG693

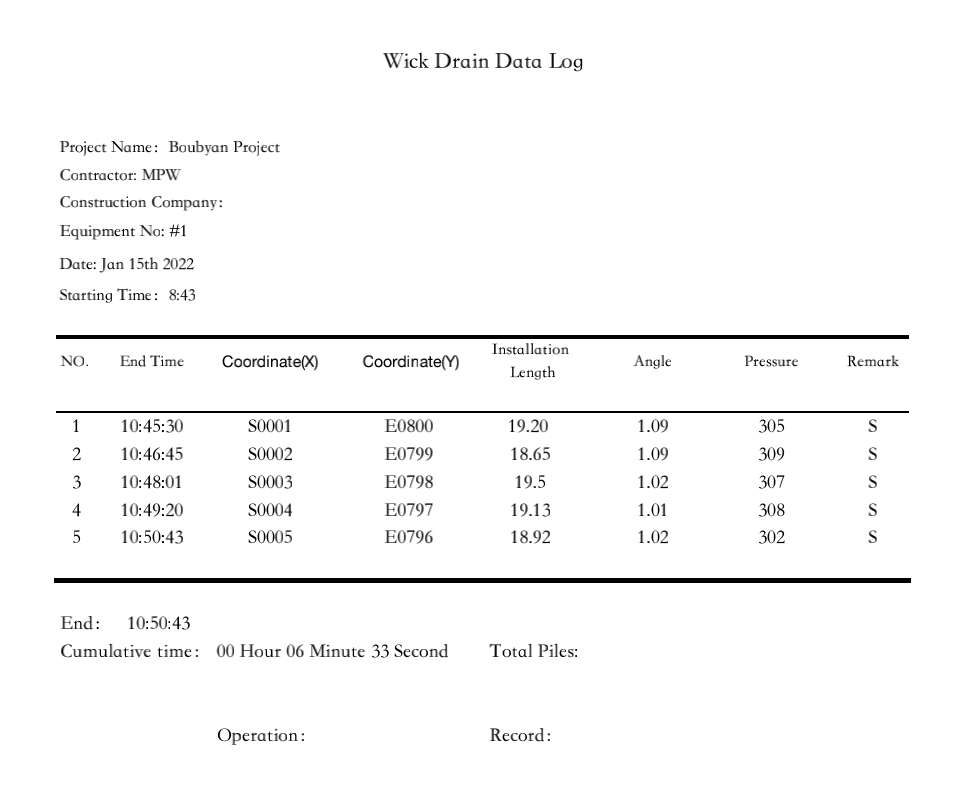

WechatIMG696
